If you are researching LED strip lighting, you have probably come across terms such as LED extrusion, LED profile, LED aluminum profile, and LED channel. These terms are often used interchangeably, but they can refer to slightly different aspects of the same type of lighting component.
An LED extrusion is an extruded profile, most commonly made from aluminum, that is designed to house and protect LED strip lights. It provides a mechanical structure for mounting the LED strip while also helping with heat management, light diffusion, and the overall appearance of the installation.
LED extrusions are available in many shapes and sizes, including surface-mounted, recessed, corner, suspended, plaster-in, floor, stair, and custom profiles.
This guide explains what LED extrusion is, how it works, the different types available, and what to consider when choosing an LED extrusion for your project.
What Is LED Extrusion?
LED extrusion refers to a profile manufactured through the extrusion process and designed for LED lighting applications.
In most applications, aluminum is extruded through a specially designed die to create a continuous profile with a specific cross-sectional shape. The resulting profile can then be cut, machined, finished, and assembled with other components such as LED diffusers and end caps.

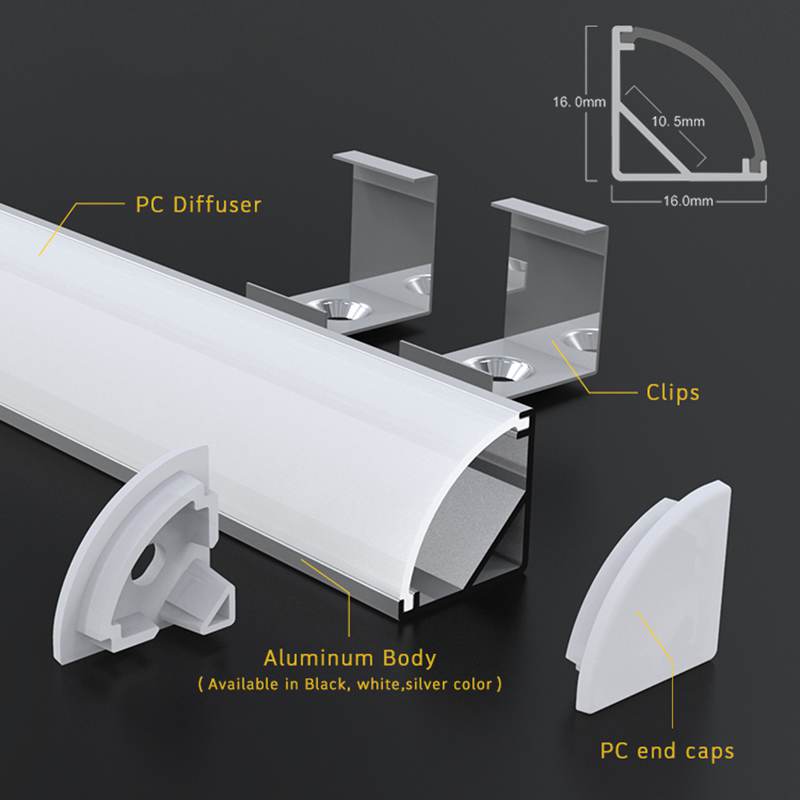

A typical LED extrusion system consists of:
- Aluminum extrusion profile
- LED strip light
- Diffuser or lens
- End caps
- Mounting clips or brackets
- Screws, adhesive, or other installation accessories
The LED strip is installed inside the aluminum profile, while the diffuser is positioned over the opening. This creates a complete linear lighting system rather than leaving the LED strip directly exposed.
The exact design of an extrusion depends on its intended application. A profile designed for cabinet lighting can be very different from one designed for recessed architectural lighting or suspended linear fixtures.
How Does LED Extrusion Work?
The basic principle is relatively simple.
The LED strip is mounted inside a channel within the extrusion. When the LEDs operate, the aluminum body provides a stable mounting surface and helps transfer heat away from the strip.
The diffuser then covers the LED strip and controls how the light is distributed and perceived.
This means an LED extrusion performs several functions at the same time:
Mechanical support: It holds the LED strip in a fixed position.
Thermal management: Aluminum can help transfer heat away from the LED strip.
Optical control: The diffuser can soften the light and reduce the visibility of individual LEDs.
Physical protection: The profile and diffuser can help protect the strip from dust, accidental contact, and mechanical damage.
Visual integration: The profile creates a cleaner and more professional finished appearance.
The actual performance depends on the complete system. A larger aluminum profile does not automatically make every LED strip run cool, and a diffuser does not automatically eliminate visible LED points.
Why Is Aluminum Commonly Used for LED Extrusion?
Aluminum is the most common material used for LED extrusion because it combines relatively low weight, good thermal conductivity, structural rigidity, and suitability for extrusion manufacturing.
For LED lighting applications, these properties are useful because the same extrusion can provide both mechanical support and a thermal path for the LED strip.

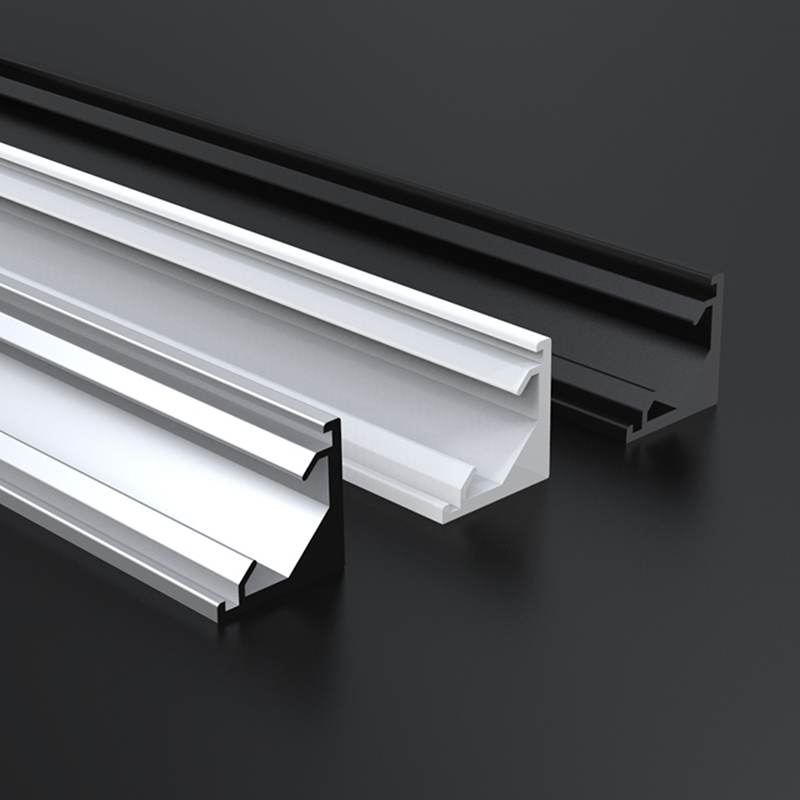

Aluminum profiles can also be finished in different ways to match architectural and interior designs.
Common surface finishes include:
- Anodized aluminum
- Powder coating
- Black
- White
- Silver
- Other customized colors
For B2B projects, surface consistency is important because small differences in color or finish can become noticeable when hundreds of meters of profile are installed in the same project.
What Are the Different Types of LED Extrusion?
There is no single universal LED extrusion. Different profile designs are developed for different installation environments.
1. Surface Mounted LED Extrusion
Surface-mounted profiles are installed directly onto a wall, ceiling, cabinet, shelf, or other surface.
They are relatively easy to install because they normally do not require a large groove to be cut into the mounting surface.
They are commonly used for:
- Under cabinet lighting
- Wardrobe lighting
- Shelving
- Furniture
- Display cabinets
- Decorative wall lighting
- General linear lighting
This type is often a practical choice for retrofit projects.
2. Recessed LED Extrusion
Recessed profiles are designed to sit inside a groove or opening in the mounting surface.
The result is a more integrated appearance because less of the profile remains visible after installation.
Recessed LED extrusions are commonly used in:
- Walls
- Ceilings
- Furniture
- Cabinets
- Architectural features
- Joinery
The installation needs to be planned carefully because the groove dimensions must match the actual extrusion dimensions.
3. Corner LED Extrusion
Corner profiles are designed for installations where the LED strip needs to illuminate at an angle.
For example, a corner extrusion can be installed at the junction between two surfaces or underneath a cabinet to direct light toward a countertop.
The angled geometry can simplify installation while also controlling the direction of the emitted light.
4. Suspended LED Extrusion
Suspended profiles are designed to hang from ceilings using suspension cables, rods, or other mounting systems.
They are commonly used for linear pendant lighting in:
- Offices
- Retail spaces
- Restaurants
- Hotels
- Residential interiors
- Commercial projects
Suspended systems can also be designed as continuous linear lighting systems using multiple connected extrusion sections.
5. Plaster-In or Trimless LED Extrusion
Plaster-in profiles are designed to be integrated into drywall or plastered surfaces.
The profile typically includes a flange that allows the surrounding surface material to be finished against the extrusion.
This can create a more seamless appearance in architectural lighting applications.
Because installation involves drywall or plaster work, the profile should be selected before construction rather than treated as a simple finishing accessory.
6. Floor and Stair LED Extrusion
Floor and stair profiles are designed for applications where the extrusion needs to withstand more demanding installation conditions.
Depending on the design, they may be used for stair nosing, step illumination, floor-level lighting, or architectural pathways.
Mechanical strength, slip resistance, diffuser protection, and environmental conditions should be considered for these applications.
7. Flexible and Custom LED Extrusion
Some projects require profiles that cannot be achieved using a standard straight extrusion.
Flexible profiles or custom-designed extrusions may be developed for curved surfaces, special furniture structures, circular lighting, or unusual architectural installations.
For B2B applications, custom extrusion can be useful when the lighting design requires a specific cross-section, mounting method, or optical effect.
What Components Are Used With LED Extrusion?
An aluminum extrusion is only one part of a complete LED profile system.
LED Strip
The LED strip provides the light source. Its width, power consumption, LED density, voltage, color temperature, and construction need to be compatible with the extrusion.
Diffuser
The diffuser sits above the LED strip and affects both the appearance and optical performance of the lighting.
Common options include clear, frosted, and opal or milky diffusers.
A clear diffuser can provide high light transmission but may show individual LED points more clearly. A frosted or opal diffuser can provide greater visual diffusion.
End Caps
End caps close the ends of the extrusion and can improve the finished appearance.
They may also include openings for wires when cable routing is required.
Mounting Accessories
Depending on the profile, installation may use mounting clips, brackets, screws, adhesive backing, suspension kits, or other hardware.
When ordering large quantities, it is important to confirm whether these accessories are included or need to be purchased separately.
What Should You Consider When Choosing LED Extrusion?
Choosing an LED extrusion should start with the actual lighting application rather than the appearance of the profile alone.
LED Strip Width
The internal width of the extrusion must accommodate the LED strip.
A strip may physically fit inside the channel but still have compatibility issues with connectors, wiring, or other components.
Always check the internal dimensions rather than relying only on the external profile width.
Profile Depth
Profile depth affects installation space, heat management, and optical performance.
A shallow profile may be suitable where space is limited, while a deeper profile can provide more room between the LEDs and diffuser.
If the project requires a smooth, continuous light line, profile depth should be evaluated together with LED density and diffuser type.
LED Strip Power
Higher-power LED strips generally require greater attention to thermal management.
The extrusion should provide sufficient contact area and thermal mass for the intended LED strip and installation conditions.
The surrounding environment also matters. A profile enclosed inside furniture may have different thermal conditions from one installed in an open ceiling.
Diffuser Type
Choose the diffuser according to the required lighting effect.
If maximum transmission is important, a clear cover may be considered. If visual uniformity is more important, frosted or opal diffusers may be more appropriate.
Installation Method
Consider whether the profile will be:
- Surface mounted
- Recessed
- Suspended
- Installed into drywall
- Mounted in a corner
- Integrated into furniture
- Installed on a floor or stair
The installation method should influence the profile design from the beginning.
Environment
Indoor and outdoor installations have different requirements.
For humid, wet, dusty, or outdoor applications, the complete lighting system needs to be designed for the environment. An aluminum extrusion alone does not make an LED installation waterproof.
The LED strip, diffuser, end caps, cable entries, seals, power supply, and installation method should all be evaluated together.

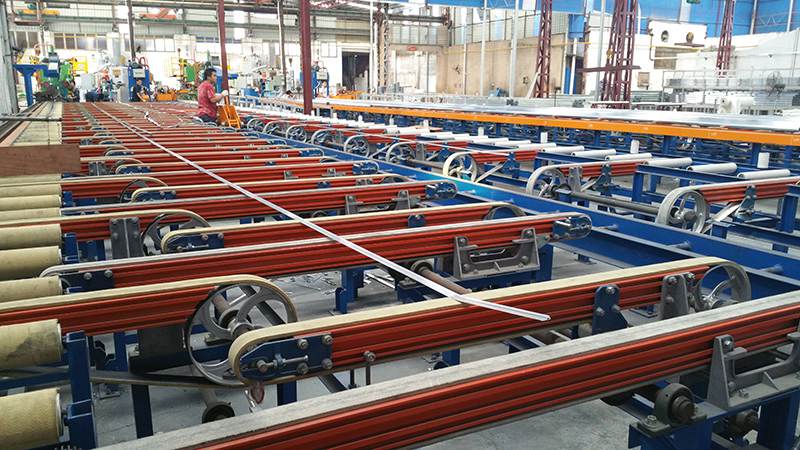

How Is LED Extrusion Manufactured?
For B2B buyers, understanding the manufacturing process can help when evaluating suppliers.
A typical custom aluminum LED extrusion process includes several stages.
1. Product Design
The profile cross-section is designed according to the required LED strip size, installation method, optical requirements, and mechanical structure.
For custom products, CAD drawings and 3D models are normally developed before tooling.
2. Extrusion Tooling
A customized extrusion die is manufactured according to the profile design.
The aluminum is then heated and pushed through the die to create a continuous profile with the required cross-sectional shape.
3. Cutting
The extruded material is cut into standard or customized lengths.
Precision cutting is important when profiles need to be assembled into continuous linear lighting systems.
4. CNC Machining
Depending on the design, additional CNC machining may be required for drilling, punching, slots, mounting holes, or other features.
5. Surface Finishing
The aluminum can be anodized, powder coated, or processed using another specified surface treatment.
The finish should be consistent across production batches, especially for visible architectural applications.
6. Diffuser and Accessory Assembly
The final production process may include diffuser cutting, end-cap installation, accessory preparation, packaging, and other assembly operations.
This makes it possible for a manufacturer to supply a more complete LED profile solution instead of only providing raw aluminum extrusion.
LED Extrusion vs. LED Profile: What’s the Difference?
The terms LED extrusion and LED profile are often used to describe the same product category.
However, there is a slight difference in emphasis.
“LED extrusion” usually emphasizes the manufacturing process—the aluminum profile is produced through extrusion.
“LED profile” or “LED aluminum profile” usually describes the finished component used in an LED lighting system.
Therefore, an aluminum LED channel may be described as an LED extrusion, LED profile, LED aluminum profile, or LED channel depending on the manufacturer and market.
For buyers, the more important factors are the actual dimensions, materials, compatibility, optical characteristics, and manufacturing quality rather than the terminology used in the product title.
When Should You Choose Custom LED Extrusion?
Standard profiles are suitable for many common applications, but custom extrusion can be valuable when a project has specific requirements.
Custom LED extrusion may be considered when you need:
- A specific internal width
- A customized profile height
- Special mounting geometry
- A unique light-emitting angle
- Integration with furniture
- A special diffuser
- Customized surface color
- A continuous architectural lighting system
- OEM-branded packaging
- A profile designed around a proprietary LED strip
For large-volume B2B projects, custom extrusion can also allow the profile to be designed around the complete lighting system rather than forcing the LED strip to fit an existing standard channel.
What Should You Ask an LED Extrusion Manufacturer?
Before placing a bulk order, B2B buyers should ask the manufacturer for more than a product catalog.
Important questions include:
- What aluminum alloy is used?
- What are the internal and external dimensions?
- What LED strip widths are compatible?
- What profile lengths are available?
- What diffuser materials are available?
- What surface finishes and colors can be supplied?
- What mounting accessories are available?
- Can the extrusion be customized?
- Can the manufacturer produce custom extrusion tooling?
- What are the MOQ and tooling costs?
- Can samples be provided before mass production?
- Can cutting, machining, assembly, and packaging be handled by the same supplier?
A manufacturer capable of handling extrusion, machining, finishing, diffuser customization, and assembly can simplify the supply chain for OEM and project-based customers.
Final Thoughts
LED extrusion is an important component of modern linear LED lighting systems. Although the basic concept is simple, the profile can influence thermal management, light diffusion, mechanical protection, installation, and the overall appearance of the finished lighting system.
The right extrusion depends on the LED strip, profile dimensions, diffuser, installation method, power level, environment, and project requirements.
For simple cabinet and furniture applications, a standard surface-mounted extrusion may be sufficient. Architectural projects may require recessed, plaster-in, suspended, corner, or custom profiles.
For B2B customers, the manufacturer is also an important part of the selection process. A capable supplier should be able to support not only standard aluminum extrusion but also custom design, tooling, machining, surface finishing, diffuser customization, assembly, and OEM/ODM production.
By evaluating the complete LED extrusion system rather than the aluminum profile alone, buyers can select a solution that is better matched to the technical, visual, and commercial requirements of their project.
